Your Solution for Testing Design
Blueprint has captured much attention in the oil and gas industry for its ease-of-use and effectiveness in creating testing plans. Blueprint is a stand-alone software used to plan and optimize all your testing needs. Users drag-and-drop components stored in palettes – valves, iBOPs, annulars, pipe rams, etc. – and connect them using pipes. Blueprint identifies which components are pressurized and notifies the user when errors are encountered, such as isolated cavities, enabling them to correct them prior to outputting the result as a standard PDF file. Blueprint is one of the essential pieces in OTC’s GreenLight digital pressure testing software suite but can also be used as a stand-alone testing design tool.

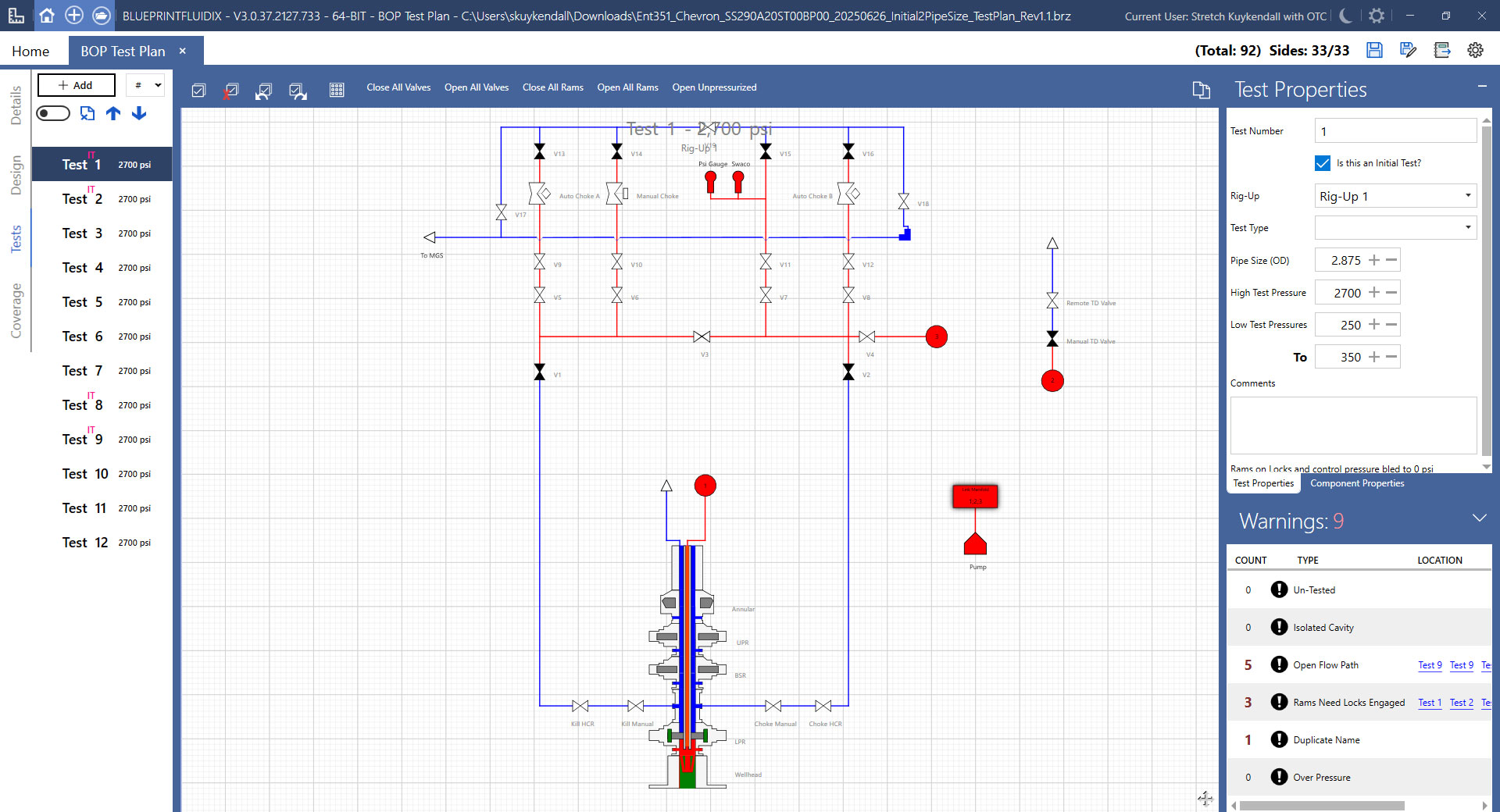

Smart Error Detection
Blueprint flags issues in real time, such as isolated cavities or over-pressurized components, helping users identify and correct problems before test plans are finalized—saving time and reducing costly mistakes.
Reporting
Quickly export your completed test design as a standardized, professional PDF that can be sent to others independently or used directly in GreenLight ensuring test plans are consistent, legible, and field-ready.
Stand-Alone or Fully Integrated
Use Blueprint independently or as part of the GreenLight pressure testing suite. Whether you’re designing in isolation or feeding directly into execution workflows, Blueprint fits seamlessly into your operations.

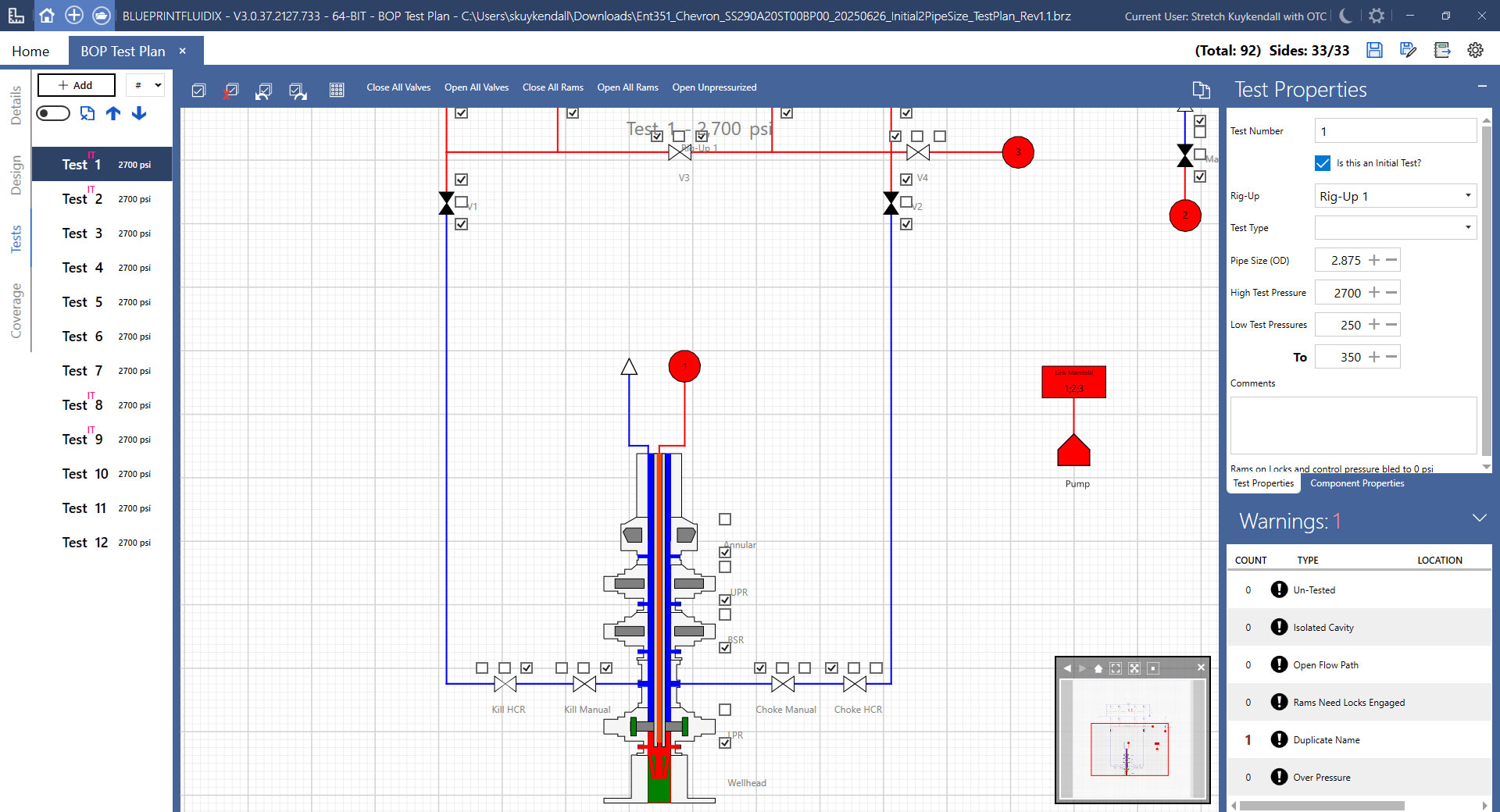

Visual Test Plan Builder
Design complex pressure tests with drag-and-drop simplicity. Users build diagrams by connecting components using virtual pipes, just as they would in the field. Components are selected from palettes that include Standard BOP, Coiled Tubing BOP, MPD, IRS, valves, chokes, manifolds, pressure sources, gauges, iBOPs, annulars, pipe rams, and more—giving you the flexibility to model any configuration with precision.
